Exin Zone 0 Light

720 Lumens
9.6 v Rechargeable Nickle metal hybride battery
10 – 12 Hours running time
8 Hours charging time
LED light type
Manufactured in Australia
Gas group IIC zone 0
ATEX / Explolab certification

Rechargeable Worklight

COB light Switch mode – Dim / Middle / High / Off  1200/ 2400 Lux @ 0,5 m (step 1 / 2) Battery life: 2hr / 4hr (step 1 / 2) 0⁰ - 180⁰ angle adjustment
2 hr charging
Battery type and capacity – Lithium iron phosphate 19.2v / 1400mAh  Power rating 14w
IP 65 ATEX / Explolabs certification  Accessories : Magnetic Bracket ; Scaffolding Bracket ; Tripod

Magnetic Bracket

Two extremely powerful rubber cased magnets
A holding force of more than 10 kg each
The light can be tilted to the desired angle once mounted

Worklight Accessories

Tripod
Designed to meet any working situation in hazardous areas where illumination in various heights and angles is key
Extendable to 3 meters

Rechargeable Torch

190/380 Lux @ 0,5 m / Spot: 350 Lux @ 0,5 m
Battery life: 6hr / 3hr (step 1 / 2) / Spot 3h
Adaptor DC 5 V / 2A
Battery type and capacity – Lithium iron phosphate 3.2 V / 2800MAH 8.96 Wh
Power rating 2.5W
4 hr charging
IP 65
Battery capacity indicator / charging base / adaptor / magnetic base / hook
ATEX / Explolabs certification

LED Light Fittings

COB LED / Spot: SMD LED
Material : GRP; 7J impact; Corrosion proof
Diffuser : Polycarbonate, 90% light transmission
Power : 9w – 28w
IP 67
ATEX / Explolab certification

Fluorescent Light Fittings

Housing: SMC polyester plastic reinforced with glass fiber, color RAL 7038
T8 fluorescent lamps in parallel configuration
Switch with safety lock; when opening the central lock, all poles of the volt-age supply to the ballast are discon-nected
In case of a lamp fault, the electronic ballast disconnects the defective lamp from the power supply
IP66
ATEX / Explolabs certification

AC Worklight

COB LED
Switch mode – Low / High
1600/ 3200 Lux @ 0,5 m (step 1 / 2)
22.8 Watts / 220 - 240 VAC
Input current 0.4 Amps max
IP 65
10 metre cable with CEAG 16A plug
Accessories : Magnetic Bracket ; Scaffolding Bracket ; Tripod
 ATEX / Explolabs certification

Stainless Steel Enclosures

For use in Industrial and Hazardous areas
ATEX / Explolabs Certification
316 Stainless steel
IP 66
Multi or single hinged lids
Drilled and populated as per customers requirements
Sizes
SS 316 Junction box; transition; style 2 way; square ; dimensions wd 300 x 300 x 150
SS 316 Junction box; transition; style 2 way; rectangular ; dimensions wd 380 x lg 450 x ht 200 mm
SS 316 Junction box; transition; style 2 way; square ; dimensions square 480 x ht 200 mm
SS 316 Junction box; transition; style 2 way; rectangular ; dimensions wd 450 x lg 620 x ht 200 mm
SS 316 Junction box; transition; style 2 way; rectangular ; dimensions wd 250 x lg 300 x ht 150 mm
SS 316 Junction box; transition; style 2 way; rectangular ; dimensions wd 300 x lg 400 x ht 200 mm
SS 316 Junction box; transition; style 2 way; rectangular ; dimensions wd 400 x lg 500 x ht 200
SS 316 Junction box; transition; style 2 way; rectangular ; dimensions wd 600 x lg 400 x ht 200 mm

Stainless Steel Enclosures Sizes

SS 316 Junction box; transition; style 2 way; square ; dimensions square 600 x ht 250 mm
SS 316 Junction box; transition; style 2 way; rectangular ; dimensions wd 500 x lg 700 x ht 250 mm
SS 316 Junction box; transition; style 2 way; rectangular ; dimensions wd 800 x lg 1000 x ht 300 mm
SS 316 Junction box; transition; style 2 way; rectangular ; dimensions wd 800 x lg 1200 x ht 300 mm
SS 316 Junction box; transition; style 2 way; square ; dimensions square 300 x ht 150 mm
SS 316 Junction box; transition; style 2 way; rectangular ; dimensions wd 400 x lg 600 x ht 200 mm
SS 316 Junction box; transition; style 2 way; rectangular ; dimensions wd 260 x lg 350 x ht 150 mm

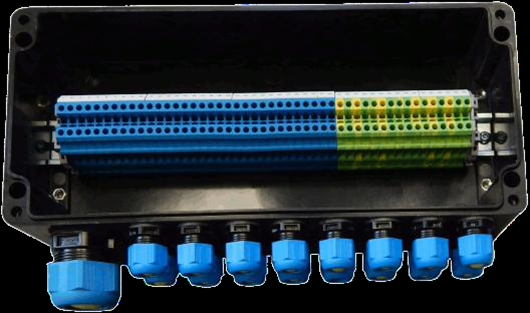

GRP Enclosures

Glass fibre reinforced Polyester
High IP protection class
Corrosion resistance
Impact resistance
ATEX / Explolabs certification
Drilled and populated as per customers requirements
5

GRP Enclosures Sizes

 KE1 75 X 80 X 60
KE2 75 X 110 X 60
KE3 75 X 160 X 60
KE31 75 X 190 X 60
KE32 75 X 230 X 60
KE4 120 X 125 X 90
KE5 120 X 220 X 95
KE51 160 X 160 X 95
KE6 160 X 260 X 95
KE7 160 X 360 X 95
KE71 160 X 560 X 95
KE8 250 X 255 X 125
KE9 250 X 400 X 125
KE91 250 X 600 X 125
KE10 405 X 400 X 125
KE11 250 X 255 X 165
KE12 250 X 400 X 16

Electrical Trace Heating Tape & Accessories

Self-regulating, constant wattage and heat trace cable, suitable for hazardous areas
Temperature Sensors for Hazardous areas
Control panels with digital temperature control over temperature protection & thyristor control

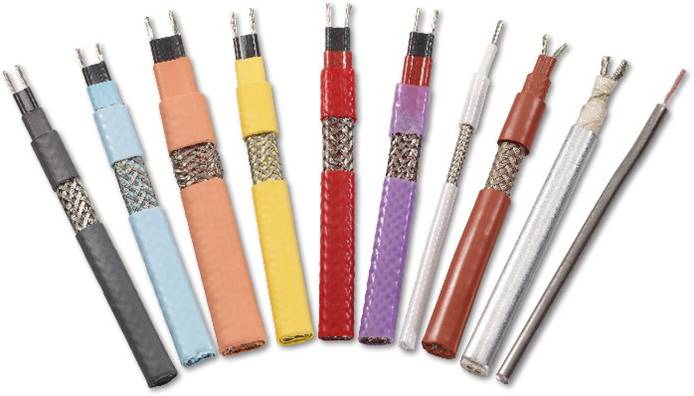

Electric Trace Heating Tape

250ºC exposure temperature withstand, (energised or switched off).
High power outputs to 100W/m at 10ºC
Inherently temperature-safe. (ITS)
External temperature controls not necessary

Electric Trace Heating Tape

Automatically adjusts heat output in response to increasing or decreasing pipe temperature.
Can be cut-to-length with no wastage.

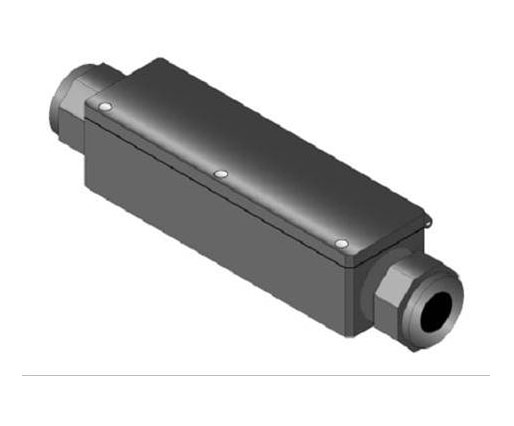

Electric Trace Heating Tape Accessories

Termination kits
The kits are available for safe and hazardous areas and contain all the parts required for connection to the power and to terminate the end of the cable.

Electric Trace Heating Tape Themostat

Thermostat
Line and ambient sensing thermostats are used for maintaining proper viscosity in process temperature control or freeze protection applications.

Electric Trace Heating Tape Connector

Connectors
The StripFree range of connectors is a universal power termination and splicing system for use with self-regulating heating cables.
No special tools are needed to perform a neat, convenient and simple termination.
Installation comprises simply cutting to length the heater and removal of the outer sheath (if applicable).
The heating cable is inserted into the StripFree unit and the connection is made by screwing down the cutting blades onto the buswires, whilst automatically clamping the braid.

Flameproof Heaters

Manufactured to customers specification

Mineral Insulated Cables (Pyro)

MI cables are used for high temperature environments
Cables made to customer specifications / requirements

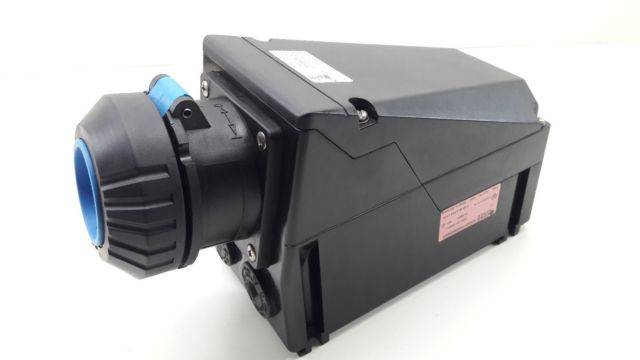

Plugs & Sockets – EATON (CEAG)

25 metres cable and plug
Choice of 3 or 4 mounted sockets
220 vac
16A

GUBS

Zone 1, 2, 21, 22
Group IIC
Aluminum junction boxes
Glass or solid lid
IP66
Choice of 8 sizes
ATEX / Explolab certification

GUB with Glass Window

Zone 1, 2, 21, 22
Group IIC
Aluminum junction boxes
Glass or solid lid
IP66
Choice of 8 sizes
ATEX / Explolab certification

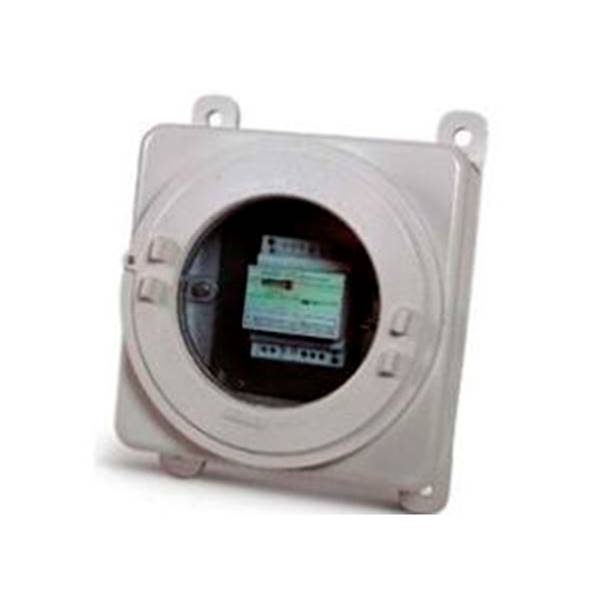

Ex Grounding and Grounding Control Device

Active grounding unit for static grounding and permanent monitoring
